About to get started with new GridBot v2 build

ferschke · September 28, 2021, 5:41pm

OK, I think I got it.
I needed
INVERT_X_DIR false
INVERT_Y_DIR false
INVERT_Z_DIR true

but I had false, true, true.
No mirroring any more. Prints are rotated 90 degrees to the left, but I think that’s because my origin is set to the rear left like the homing position, but kiri’s origin is bottom left, so prints are just rotated 90 degrees. Not a big deal, but I think I will change that.

I did change the extrusion length limiits, so I can do a proper load/unload of the whole length with a decent speed. I think a sload unload might have caused my heat break blocking.

Do you usually unload filament after each print (if you are not immediately printing again)? I might leave it loaded for now.

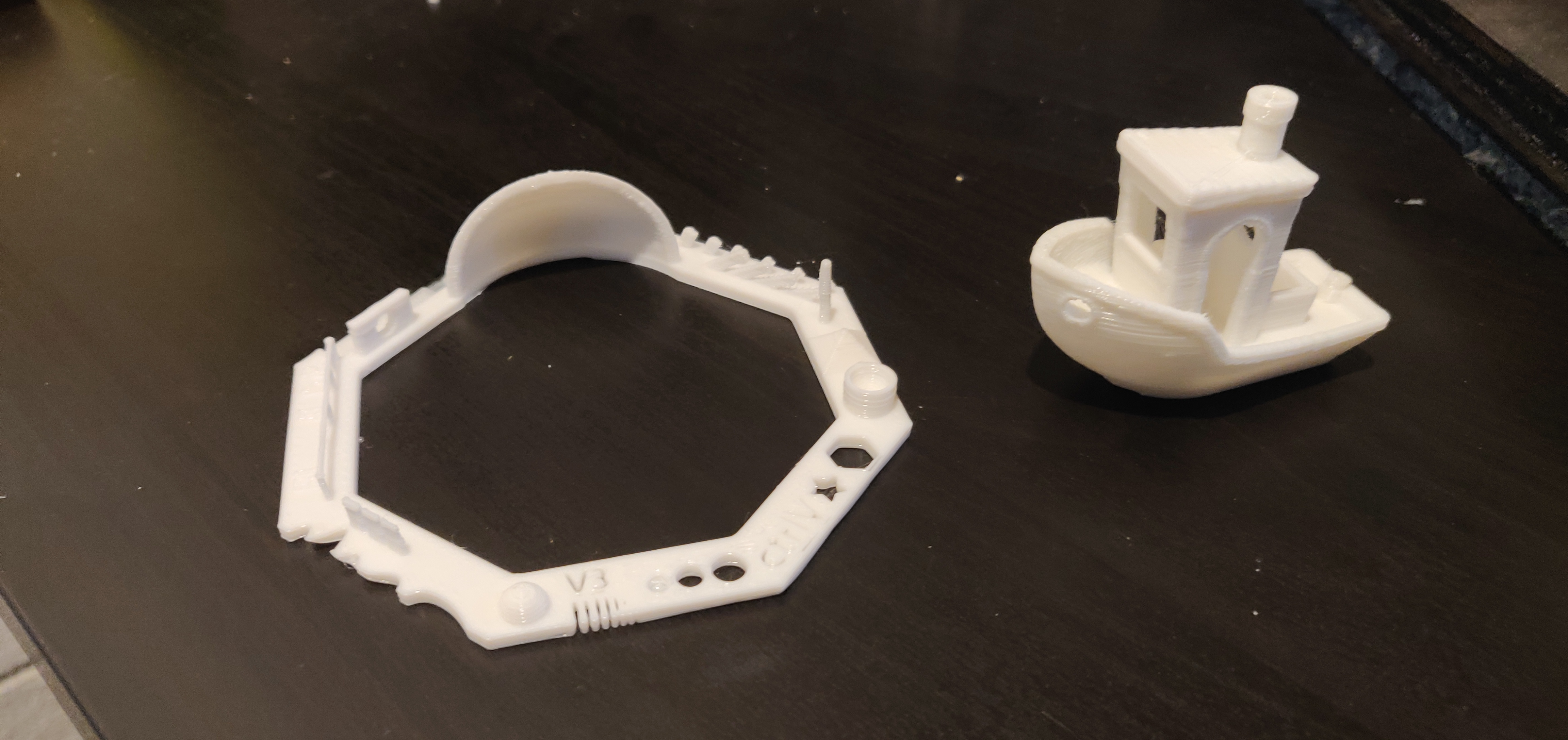

ferschke · September 28, 2021, 8:26pm

stewart · September 28, 2021, 10:29pm

i usually leave it loaded

ferschke · September 29, 2021, 5:16pm

Everything seems to be working fine now. I did have to change the firmware from CoreYX to CoreXY after I made the change to the stepper inversion (which fixed the mirroring, but swapped the axes). Now the axes are all correct and no mirroring.

ferschke · September 29, 2021, 9:00pm

I just installed the raspi camera and it appeared automatically after restart. Nice.
Is there a way to configure camera rotation? My picture is rotated 90 derees counterclockwise. I could adjust my mount, but I thought I’d ask if there’s an easy way to rotate already.

stewart · September 29, 2021, 10:17pm

sure. create the file:

grid-bot/etc/camera.conf

and in it define:

ROTATION=90

or whatever rotation you want. the change should be immediate. all the magic happens in this script:

github.com

GridSpace/grid-bot/blob/master/bin/start-camera.sh

#!/bin/bash

# for standalone operation, add the following line to /etc/rc.local
# nohup nice -n 19 su -l -c /home/pi/start-camera.sh pi > /tmp/camera.log 2>&1 &

cd /home/pi/grid-bot >/dev/null 2>&1 || cd /home/pi

which raspistill || exit

while /bin/true; do
    [ -f etc/camera.conf ] && source etc/camera.conf
    export RUN=1
    export DATE=$(date '+%Y-%m-%d')
    export TIME=$(date '+%H:%M')
    export TMPFILE=/tmp/camera.jpg
    if [ ! -z ${TIMELAPSE} ]; then
       mkdir -p "${TIMELAPSE}/${DATE}"
       export TMPFILE="${TIMELAPSE}/${DATE}/${TIME}.jpg"
       if [ ! -z ${MAXAGE} ]; then
           find ${TIMELAPSE} -type f -mtime ${MAXAGE} -print -delete

This file has been truncated. show original

ferschke · September 29, 2021, 10:38pm

Awesome, thanks. That’s perfect.

ferschke · October 1, 2021, 5:46pm

Now that everything’s working great, I’m already thinking about the next changes.
I ordered a Whambam Mutant v2 and hope to get this installed as an easy way for swapping the hotend

https://whambamsystems.com/mutant

It seems like it should be easy enough to install.

ferschke · October 1, 2021, 8:48pm

With this I think I will close this thread and just start new topics for all the upcoming adventures with the GridBot. Thanks for all the support so far.
